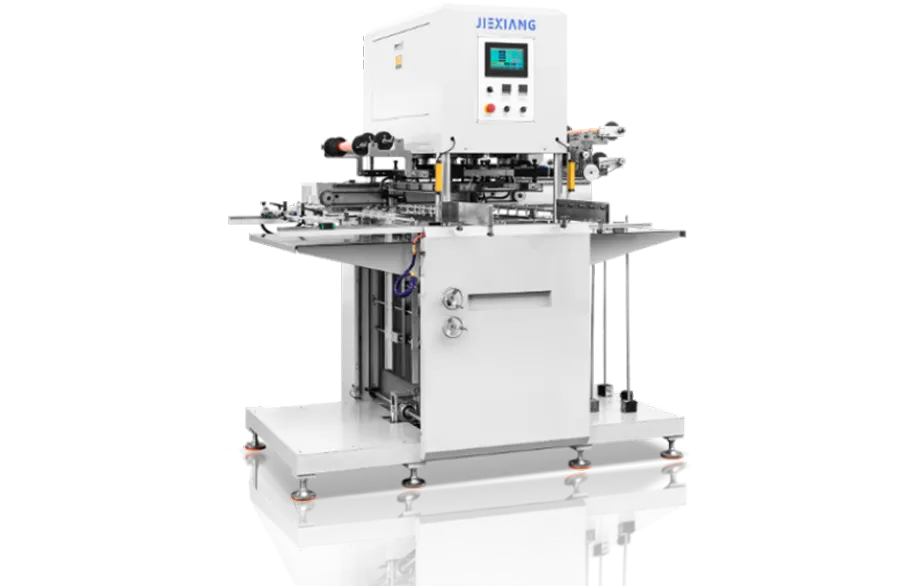

EspañolYou’re in the packaging business, and the difference between a standard box and a premium one often comes down to a single detail: the finish. A Automatic Foil Hot Stamping Machine transforms ordinary paper and cardboard into eye-catching packaging with metallic luster, holographic effects, and crisp embossed details.
Modern automatic foil stamping machines deliver up to 7,500 sheets per hour with ±0.1mm accuracy, handling everything from simple woodblock hot stamping to precise holographic image application and highly complex hot stamping effects.”
More Than Decoration
Foil stamping is more than just decoration—it’s a functional upgrade that changes how customers perceive your product.
Adds Metallic Luster and Holographic Effects
Foil stamping creates a metallic finish that catches light and draws attention. Holographic foil adds a shimmering, color-shifting effect that signals premium quality. These finishes make packaging stand out on crowded shelves and communicate value before a customer even reads the label.
Enables Precise Detail and Fine Text
The accuracy of automatic foil stamping—±0.1mm—makes it possible to stamp fine text, small logos, and intricate patterns that would be impossible with manual processes. For luxury packaging, this precision is the difference between a premium product and a counterfeit-looking one.
Works Across Multiple Substrates
The machine processes a range of materials: paper, carton board, corrugated board, and semi-hard plastic. This versatility allows converters to use the same equipment for folding cartons, rigid boxes, labels, and specialty packaging.
Built to Hold Precision
The build quality of a foil stamping machine determines how long it holds its precision.
Castings and Components
All castings are made of QT600-7 ductile iron for high strength. The crankshaft is made of German nickel-chromium-molybdenum diamond steel for high precision. These materials provide the rigidity needed to maintain ±0.1mm accuracy over millions of cycles.
Key Components from Global Suppliers
The machine uses components from established international suppliers: Mueller, Omron, Schneider, and Panasonic. Pneumatic components come from Taiwan Airtac, and the main PLC uses Inovance Technology. This sourcing strategy means replacement parts are available and the machine meets international reliability standards.
Precision-Focused Design
An intermittent mechanism imported from Taiwan ensures precise machine movement. The side gauges utilize a Panasonic photoelectric system. A centerline positioning system enables quick sheet changeovers, and a Chinese and English touchscreen interface simplifies operation. An automatic oiling system with cooling fan keeps moving parts lubricated.
Specs That Matter
| Parameter | JX-1040C | JX-1060T/TZ |
|---|---|---|
| Max. Working Speed | 4,800 sheets/hour | 7,500 sheets/hour |
| Stamping Accuracy | ≤±0.15mm | ≤±0.1mm |
| Max. Foil Diameter | 250mm (vertical) | — |
| Key Features | Full automatic flat-bed, comprehensive hardware configurations | Platen foil stamping and die-cutting dual-purpose |
Smarter Foil Feeding
The foil feeding system is what separates automatic stamping from manual processes.
Vertical and Horizontal Foil Feed
The vertical and horizontal foil feed systems enable simultaneous foil stamping, reducing foil usage and saving foil changing time. The three vertical and two horizontal foil feed mechanisms all utilize Inovance servo motors and an Inovance PLC control system.
Efficient Foil Collection
The vertical foil collection mechanism features two foil collection methods. Two brush rollers remove waste foil, and the foil collection and placement rack can be pulled out of the machine for easy foil replacement. This design minimizes downtime for foil changes and keeps waste management simple.
Precise Foil Tension Control
Jiexiang’s solution includes hydraulic constant tension suspension system (±0.5N fluctuation) and maglev acceleration guide rail (0-120m/min in 0.2s), compared to conventional pneumatic paper feed with 0.5s acceleration delay. This tension control ensures consistent foil feed and reduces waste from wrinkles or misalignment.
Questions Production Managers Ask
What’s the difference between the JX-1040C and the JX-1060T?
The JX-1040C is a fully automatic flat-bed hot foil stamping machine designed primarily for foil stamping. The JX-1060T/JX-1060TZ is a platen foil stamping and die-cutting dual-purpose machine, combining both functions in one unit. The JX-1060T runs at 7,500 sheets/hour with ±0.1mm accuracy, while the JX-1040C runs at 4,800 sheets/hour. If you need both stamping and die-cutting, the dual-purpose model saves floor space and handling.
What materials can the machine stamp?
The machine stamps paper, carton board, corrugated board, and semi-hard plastic. For special material requirements, JIEXIANG offers consultation and sample testing. The electroplated aluminum foil is a multi-layer composite material manufactured on PET film using vacuum aluminum coating technology, which can be heat-pressed and transferred to substrates in 0.1 seconds.
How is stamping accuracy maintained?
Accuracy is maintained through high-quality castings (QT600-7 ductile iron), a German nickel-chromium-molybdenum steel crankshaft, precise machine movement from the Taiwan intermittent mechanism, and Jiexiang’s automatic pressure adjustment control device. Regular calibration and maintenance of key parts also extend service life.
Support That Matters
JIEXIANG Machinery has been manufacturing automatic foil hot stamping machines with a focus on precision and durability.
JIEXIANG Machinery offers a range of automatic foil hot stamping solutions, including the JX-1040C and the dual-purpose JX-1060T/TZ. The company’s machines feature comprehensive hardware configurations that adapt to the foil stamping requirements of the vast majority of products. Hot stamping technology meets various processing needs, from simple woodblock hot stamping to precise holographic image application and highly complex effects.
After-sales support includes a one-year warranty, configuration forms, video exchange service details, and a professional after-sales service team. For converters looking to add foil stamping capability to their finishing line, JIEXIANG provides the equipment and support to get it right.
Automatic foil hot stamping is one of the most effective ways to upgrade packaging from functional to premium. The right machine delivers speed, precision, and consistency that manual processes can’t match. With the JX-1040C, you get the build quality, component sourcing, and technical support to run foil stamping at production scale—and create packaging that stops shoppers and sells products.
Ready to explore foil stamping for your packaging line? Reach out to JIEXIANG Machinery’s team — they can provide machine specifications, sample testing, and configuration recommendations based on your specific production requirements.
