How Does an Automatic Foil Hot Stamping Machine Handle 200T Pressure?

You're specifying a flat-bed foiler for packaging production, and the spec sheet lists a 200-ton working pressure. Is that much force really necessary? For deep embossing, heavy cardstock, and multi-layer foil stamping, the answer is yes. An Automatic Foil Hot Stamping Machine must generate enough pressure to transfer the foil image cleanly across the full sheet, and the frame must absorb that force without flexing. The JX-1040C uses a ductile iron QT600-7 frame, a German nickel-chromium alloy crankshaft, and a 200T pressure system to deliver consistent impressions at 4,800 sheets per hour. This article explains what the 200T rating means in practice, how the frame material contributes to registration stability, and what to verify before specifying a heavy-duty foiler.

What Does 200 Tons of Pressure Actually Deliver?

The 200T working pressure is the force the press applies between the heated die and the paper. This force determines how completely the foil transfers to the substrate, especially for large solid areas, deep embossing, and multi-level dies. At lower pressures, the foil may not fully release from the carrier, leaving a patchy or silvered appearance. The JX-1040C applies its 200T through a crankshaft made of German nickel-chromium alloy steel. This material offers high precision and permanent deformation resistance, ensuring that the pressure remains consistent across millions of cycles. The maximum foil stamping area is 1010×720mm, and the press handles paper from 105-2000g/m² cardboard, plus corrugated paper up to 4mm thick.

Crankshaft Material and Pressure Consistency

The German nickel-chromium alloy crankshaft is the heart of the pressure system. It resists deformation under the 200T load, maintaining the same stroke length and pressure point from the first sheet to the last. Without a crankshaft that holds its geometry, the impression depth would vary across the run.

Frame Rigidity for Registration Stability

The frame and body walls are made from ductile iron QT600-7, specially processed for high strength and permanent deformation resistance. This rigid structure absorbs the shock of each stamping cycle without flexing, keeping the die aligned with the sheet and maintaining the ±0.15mm stamping accuracy.

How Do 12 Heating Zones Improve Stamping Quality?

The JX-1040C uses a 12-zone electric heating system, adjustable from 40-200°C. Independent temperature control across the stamping area allows the operator to compensate for heat loss at the edges of the platen. Without zone control, the edges run cooler than the center, causing incomplete foil transfer and inconsistent gloss. With 12 zones, each area of the die receives the heat it needs. The heating system also supports fast warm-up and consistent, flawless stamping throughout the production run.

Zone Control for Large Format Dies

For dies that span the full 1010×720mm stamping area, heat distribution is a challenge. The 12-zone system allows the operator to set different temperatures for different sections of the platen, ensuring that every part of the die reaches the optimal transfer temperature.

Foil Monitoring and Alarm System

The computer-controlled foil monitoring system displays remaining and consumed foil length. An alarm triggers if the foil length drops below 6cm, preventing the press from running dry and damaging the die or the paper.

JX-1040C Technical Parameters

Sheet Size Range and Substrate Compatibility

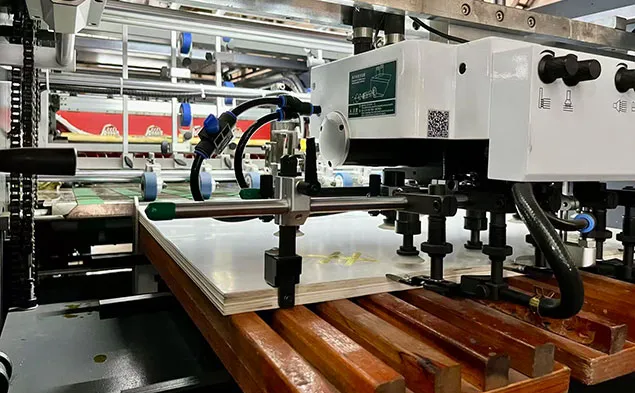

The press handles sheet sizes from 400×320mm up to 1040×750mm, covering everything from small cartons to large packaging formats. The paper range of 105-2000g/m² accommodates lightweight inserts through heavy board, and the 4mm corrugated capacity extends the press into heavy-duty packaging.

Pile Heights and Continuous Operation

The maximum feed pile height is 1400mm and the delivery pile height is 1000mm. The delivery unit features an automatic auxiliary delivery function for non-stop operation, allowing the operator to remove finished stacks while the press continues running.

Where Does a Heavy-Duty Flat-Bed Foiler Deliver the Most Value?

The JX-1040C serves packaging converters and commercial printers who need consistent foil stamping on demanding substrates. Luxury packaging, heavy cardstock, and large-format commercial work all benefit from the combination of 200T pressure, 12-zone heating, and ±0.15mm registration.

• Luxury packaging — wine boxes, spirits cartons, cosmetic packaging, and gift boxes

• Commercial print — greeting cards, invitations, and promotional materials

• Heavy cardstock — covers, tags, and packaging board up to 2000g/m²

• Corrugated packaging — premium corrugated boxes requiring foil accents

• Large-format work — sheets up to 1040×750mm

Luxury Packaging and Premium Cartons

Wine boxes, cosmetic cartons, and gift boxes demand flawless metallic finishes. The 200T pressure and 12-zone heating ensure that brand logos and decorative elements transfer cleanly across the full die area, with consistent gloss and no silvering.

Commercial Print and Large-Format Work

Greeting cards, invitations, and promotional materials benefit from the press's ability to handle large sheets and heavy stocks. The ±0.15mm registration keeps multi-color foil designs aligned with the printed background.

Answers to Common Questions About Flat-Bed Foil Stampers

What is the maximum sheet size the press can handle?

The JX-1040C handles sheets up to 1040×750mm, with a minimum of 400×320mm. The maximum foil stamping area is 1010×720mm.

How many heating zones does the press have?

The JX-1040C uses a 12-zone electric heating system, adjustable from 40-200°C. Independent control allows the operator to compensate for heat loss at the edges of the platen.

What is the foil stamping accuracy?

The press achieves ≤±0.15mm stamping accuracy. This level of precision is maintained across the full production run, from the first sheet to the last.

What maintenance does the press require?

Routine maintenance includes checking the heating zones for consistent temperature, inspecting the foil monitoring sensors, verifying the crankshaft and bearing condition, and maintaining the automatic lubrication system. The ductile iron frame requires no adjustment under normal operating conditions.

Request a Heavy-Duty Foil Stamping Configuration

An Automatic Foil Hot Stamping Machine with 200T pressure, 12 heating zones, and ±0.15mm accuracy is the practical choice for packaging converters and commercial printers who need consistent foil transfer on demanding substrates. The JX-1040C from Jiexiang delivers 4,800 sheets/hour speed, 200T working pressure, 12-zone heating, 1040×750mm max sheet size, 105-2000g/m² paper range, and a ductile iron QT600-7 frame.

Whether you're producing luxury wine boxes, cosmetic cartons, or commercial print, this press offers the pressure, heat control, and registration accuracy that heavy-duty foil stamping demands. With a German nickel-chromium alloy crankshaft and a rigid ductile iron frame, it's built for consistent performance across millions of cycles.

Contact Jiexiang for a heavy-duty foil stamping configuration assessment → their team can help you select the right model, heating zone configuration, and tooling for your specific substrates and stamping designs. Get an Automatic Foil Hot Stamping Machine that delivers 200 tons of pressure with ±0.15mm accuracy — so your foil stamping runs strong and stays precise.
