How Does a Single Machine Handle Die-Cutting, Foil Stamping, and Waste Removal?

You're running a packaging or print finishing line — folding cartons, corrugated boxes, luxury packaging, or promotional materials. The process traditionally requires multiple machines: one for die-cutting, another for foil stamping, and a third for waste removal. An automatic die cutting & waste stripping machine consolidates all three operations into a single pass — feeding sheets, die-cutting, foil stamping, stripping waste, and delivering finished blanks in one continuous flow. This guide covers what makes a full automatic heavy-duty platen die-cutting and waste stripping machine a versatile production tool — from speed and precision to substrate range and key automation features.

From Sheet to Finished Blank – Die-Cutting, Foil Stamping, and Waste Removal in One Pass

A full automatic heavy-duty die-cutting and waste stripping machine takes flat sheets of paper, cardboard, or corrugated board and transforms them into finished blanks through a series of integrated stations: sheet feeding, die-cutting, foil stamping (optional), waste stripping, and blank delivery. The machine operates continuously — from a stack of sheets to finished blanks ready for folding and gluing — in a single, automated flow.

Integrated Die-Cutting and Foil Stamping

The die-cutting station uses a precision platen to cut sheets to the required shape, while the foil stamping unit applies metallic or holographic finishes in the same pass. The maximum die-cutting and foil stamping area is 1040×720mm, with a maximum working pressure of 300 tons for standard models (600 tons for embossing models). This integration eliminates the need for separate equipment and reduces handling between processes.

Waste Stripping – The Step That Completes the Job

The waste stripping unit removes scrap material from the sheet — holes, cutouts, and perimeter waste — before the finished blanks are delivered. This eliminates a separate offline stripping step, reducing labor and improving efficiency.

7,500 Sheets/Hour, 300 Tons of Pressure, and ±0.1mm Precision – The Numbers That Define Performance

The machine delivers 7,500 sheets per hour at maximum speed, with die-cutting and foil stamping precision of ≤±0.1mm. The maximum working pressure is 300 tons (standard) or 600 tons (embossing models). The maximum feeding paper size is 1060×750mm, with a minimum of 400×360mm.

Speed That Scales With Production Demand

At 7,500 sheets per hour, a single machine can produce tens of thousands of finished blanks per shift — enough to supply multiple downstream folding and gluing lines. The non-stop feeding and delivery systems keep the line running continuously, minimizing downtime between pallets.

Precision That Protects Your Quality

The ±0.1mm precision ensures that every blank is cut to exact specifications. This accuracy is maintained through the centerline positioning system, which enables quick job changeovers while maintaining registration. The side gauges utilize a Panasonic photoelectric system for precise sheet alignment.

Ductile Iron Castings and German Nickel-Chromium Steel – The Engineering Behind Long-Term Reliability

The machine is built with QT600-7 ductile iron castings for all major structural components, providing high strength and resistance to permanent deformation. The crankshaft is made from German nickel-chromium alloy steel, offering high precision and permanent deformation resistance. The main unit employs imported genuine bearings, and the indexing mechanism is imported from Taiwan to ensure precise motion.

Components That Make a Difference

• Main PLC: Inovance Technology ensures smooth machine operation

• Pneumatic components: Taiwan-made Airtac components ensure precise movement of every pneumatic action

• Electrical components: Schneider (France) and Eaton (Germany) electrical components

• Photoelectric components: Omron (Japan) and SICK (Germany) photoelectric components

• Vacuum pump: German Becker ensures smooth feeder paper transport

• Timing belts: Imported from Taiwan for wide speed selection and high load capacity

• Overload protection: Automatically disengages and stops upon impact to minimize damage

Automatic Lubrication and Cooling

The machine features an automatic lubrication system with an oil pump equipped with an auto-cooling fan device. The oil pump circulating cooling device is imported from Taiwan, ensuring lubrication during long-term high-speed operation. An oil pressure display and abnormal oil pressure alarm device provide continuous monitoring.

10.4-Inch Touchscreen and Real-Time Monitoring – Automation That Reduces Operator Error

The machine is controlled through a 10.4-inch color touchscreen that constantly displays machine operating status. The human-machine interactive touch interface allows configuration of different long and short pulls, while the computer-controlled foil monitoring system displays remaining and consumed foil length.

Touchscreen Control for All Operations

All operations can be completed via touchscreen. The delivery section has its own control panel for more humanized operation, and the entire machine uses a Chinese/English touchscreen interface that reduces training time and operator error.

Self-Diagnostics and Alarms

The computer-controlled foil monitoring system triggers an alarm if the foil length is less than 6 cm. The oil pressure display includes an abnormal oil pressure alarm. The double-sheet detector and overload protection provide additional safeguards.

Quad-Suction Feeding, Photoelectric Registration, and Non-Stop Delivery – Precision from Start to Finish

The machine incorporates several engineering features that ensure consistent quality and minimal downtime.

Paper Feeding Unit

The feeder uses quad suction and quad feeding with adjustable suction angle and height to accommodate paper deformation. The unique paper transfer mechanism adapts to variably distorted paper sheets. Non-stop switching between main and auxiliary feeding keeps the line running continuously. The dual feeder head collision detection and electromechanical double-sheet detector prevent jams and misfeeds.

Front and Side Gauges

The front guide detection ensures paper positioning accuracy. The dual left-right push-pull guide method is adopted to satisfy different printing registration requirements. Adjustable rubber wheels and brush wheels ensure precise positioning at the front guides and side guides.

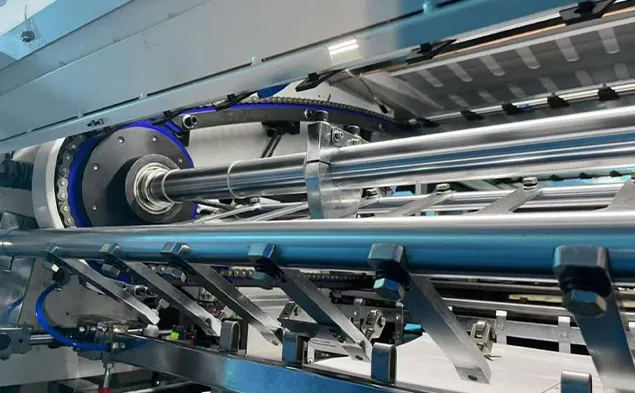

Paper Delivery Unit

The delivery section features an automatic paper aligner and dual-path air blowing device, ensuring neat stacking for both thick and thin paper. The non-stop unit enables continuous operation, and the automatic lifting/lowering control system manages the delivery pile. The main chain protection device and anti-paper-retraction device prevent issues during delivery.

Key Technical Specifications

What Production Managers Ask About Automatic Die-Cutting & Waste Stripping Machines

What substrates can the machine handle?
The machine handles paper from 80-2000g/m² and corrugated board up to 4mm thickness. This covers everything from lightweight paper to heavy cardboard and corrugated packaging materials.

What is the maximum speed?
The machine runs at 7,500 sheets per hour, with non-stop feeding and delivery systems keeping the line running continuously.

What is the precision?
The machine delivers ≤±0.1mm die-cutting and foil stamping precision, ensuring consistent quality across every sheet.

What is the maximum sheet size?
The maximum feeding size is 1060×750mm, with a maximum die-cutting area of 1040×720mm.

What safety features are included?
The machine includes overload protection, gripper bar groove protection (automatically disengages and stops upon impact), a double-sheet detector, and main chain protection.

Need Precision Die-Cutting with Waste Removal? Let's Talk

Selecting an automatic die-cutting and waste stripping machine comes down to three factors: substrate range (match your materials), speed (match your throughput), and precision (match your quality standards). Contact Jiexiang Machinery for a customized quote → —their team can help you select the right configuration for your specific die-cutting and finishing needs.

Jiexiang Machinery specializes in the development and manufacturing of automatic die-cutting, foil stamping, and waste stripping equipment for the packaging and print finishing industries. The Full Automatic Heavy-duty Die-cutting and Waste Stripping Machine features a maximum working speed of 7,500 sheets/hour, precision of ≤±0.1mm, maximum feeding size of 1060×750mm, and a maximum working pressure of 300 tons (600 tons for embossing models). The machine handles paper from 80-2000g/m² and corrugated board up to 4mm thickness. It includes an automatic lubrication system, 10.4-inch touchscreen control, non-stop feeding and delivery, and comprehensive safety protection. Jiexiang Machinery provides comprehensive technical support, installation guidance, and after-sales service. Connect with Jiexiang Machinery to discuss your substrate requirements, production volume targets, and finishing needs.
