What Can an Automatic Foil Stamping Machine Do for Your Packaging?

You’re producing folding cartons, luxury boxes, or premium labels. The difference between a good package and a great one often comes down to finishing—metallic accents, holographic effects, or crisp foil lettering that catches the light. An automatic foil hot stamping machine applies these finishes quickly, precisely, and at scale. It uses heat and pressure to transfer a metallic or holographic foil layer onto paper, cardboard, or plastic substrates. This guide covers the key specifications, performance factors, and selection criteria—so you can choose the right press for your finishing line.

What Foil Stamping Actually Does

Foil stamping is a dry printing process that uses heat, pressure, and a metallic or pigmented foil to create a decorative finish on a substrate. The foil—typically a multi-layer composite material manufactured on PET film using vacuum aluminum coating technology—is pressed onto the material by a heated die. The result is a shiny, reflective surface that can be metallic or holographic, adding visual appeal and a premium feel to packaging, labels, and promotional materials.

The Foil Transfer Process

The heated die activates an adhesive layer on the foil, bonding the metallic or holographic layer to the substrate. The transfer happens in about 0.1 seconds, with coating precision as fine as 0.1μm. This speed and accuracy make the process highly efficient for large-scale production.

Materials That Can Be Stamped

The machine processes paper, carton board, corrugated board, and semi-hard plastics. If you have special material requirements, manufacturers typically offer sample testing to verify compatibility.

Speed and Throughput That Scale With Production

Production speed directly impacts your bottom line. The JX-1040C model delivers a maximum working speed of 4,800 sheets per hour, while the JX-1060T reaches 7,500 sheets per hour. Higher speed doesn’t mean sacrificing quality—both models maintain foil stamping accuracy within ≤±0.15mm for the JX-1040C and ≤±0.1mm for the JX-1060T.

Matching Speed to Production Volume

For high-volume runs, the JX-1060T’s 7,500 sheets per hour makes a significant difference in output. For medium-volume or specialty work, the JX-1040C offers a balance of speed and precision that suits most applications.

Non-Stop Operation Features

The paper delivery table features an automatic auxiliary paper delivery function for non-stop operation, minimizing downtime between batches and keeping production flowing continuously.

Precision That Protects Your Brand Image

In packaging, registration accuracy is non-negotiable. Misaligned foil creates waste and damages brand perception. Both the JX-1040C and JX-1060T maintain tight tolerances—≤±0.15mm and ≤±0.1mm respectively. The centerline positioning system enables quick sheet changeovers while maintaining accuracy.

Factors That Affect Accuracy

Precision depends on several factors: the quality of the die, the stability of the machine’s mechanical structure, and the consistency of the foil feed. The Jiexiang machines use an intermittent mechanism imported from Taiwan to ensure precise movement, and the crankshaft is made of German nickel-chromium-molybdenum diamond for high precision.

Registration and Alignment Systems

The side gauges utilize a Panasonic photoelectric system for precise sheet alignment. This optical registration ensures that the foil is applied exactly where it needs to be, every time.

Durability and Build Quality

A foil stamping machine is a significant investment, and longevity matters. Jiexiang machines use QT600-7 ductile iron for all castings, providing high strength and stability. The entire machine utilizes components from Mueller, Omron, Schneider, and Panasonic, with pneumatic components from Taiwan Airtac ensuring precise movement.

Components That Make a Difference

• Main PLC: Inovance Technology (stock code 300124) ensures smooth machine operation.

• Pressure adjustment: Jiexiang automatic pressure adjustment control device enables fast and accurate adjustment of die-cutting pressure.

• Lubrication: Automatic oiling system with an automatic cooling fan.

• User interface: Chinese and English touchscreen interface available.

Preventive Maintenance for Long Service Life

Regular maintenance of key parts can greatly extend the service life of the equipment. Routine tasks include engine oil replacement and monitoring chain wear. A structured maintenance schedule prevents small issues from becoming major failures.

Foil Savings and Consumable Efficiency

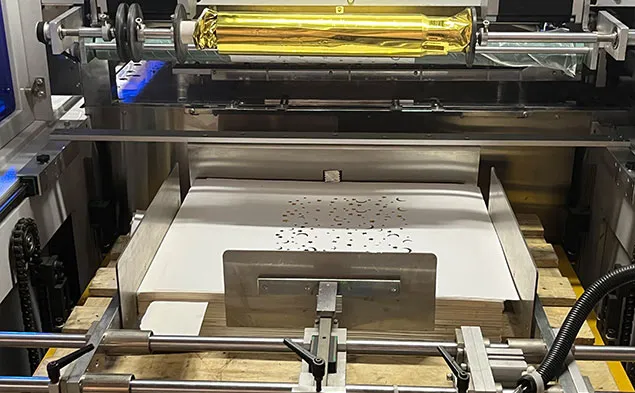

Foil is a significant ongoing cost. Machines with vertical and horizontal foil feed systems enable simultaneous foil stamping, reducing foil usage and saving foil changing time. The three vertical and two horizontal foil feed mechanisms all utilize Inovance servo motors and an Inovance PLC control system. The foil collection and placement rack can be pulled out of the machine for easy foil replacement, with a maximum vertical foil diameter of 250mm. Two brush rollers are used to remove waste foil.

Reducing Consumable Loss

With a consumable loss rate of 9%, the system is designed to minimize waste. The vertical and horizontal foil feed systems enable simultaneous foil stamping, reducing foil usage and saving foil changing time.

Quick Foil Changes

The foil collection and placement rack can be pulled out of the machine for easy foil replacement. This reduces downtime between jobs and allows operators to switch foils quickly for different projects.

Applications Across Packaging Segments

Automatic foil hot stamping machines are used across multiple packaging and finishing applications:

• Folding cartons: Premium packaging for cosmetics, spirits, and confectionery

• Luxury boxes: Rigid boxes with metallic or holographic accents

• Labels and tags: High-end product labeling with foil lettering

• Promotional materials: Brochures, invitations, and marketing collateral

• Corrugated packaging: Enhanced retail displays and e-commerce packaging

The ability to handle paper, carton board, corrugated board, and semi-hard plastics makes the machine versatile across these segments.

Common Questions About Foil Stamping Equipment

What’s the difference between flat-bed and platen foil stamping?
Flat-bed stamping uses a flat die that presses down onto a flat substrate—suitable for most packaging applications. Platen stamping uses a rotating or moving platen, often achieving higher speeds. The JX-1060T is a full automatic platen machine capable of both foil stamping and die-cutting.

What substrates can this machine handle?
The machine processes paper, carton board, corrugated board, and semi-hard plastics. For special material requirements, manufacturers typically offer sample testing to verify compatibility.

How accurate is the registration?
The JX-1040C maintains ≤±0.15mm accuracy; the JX-1060T achieves ≤±0.1mm. The centerline positioning system and Panasonic photoelectric side gauges ensure precise registration.

What maintenance does a foil stamping machine require?
Regular maintenance includes engine oil replacement, chain inspection, and cleaning of key components. The automatic oiling system with cooling fan reduces manual maintenance effort.

Upgrade Your Finishing Line with Advanced Foil Stamping

Choosing a foil stamping machine comes down to three factors: production volume (speed), precision requirements (accuracy), and substrate range. Request a quote or machine consultation → —Jiexiang‘s team can help you select the right model for your specific finishing needs.

This article was written with the assistance of AI to organise technical data from Jiexiang’s product documentation and industry standards.

Jiexiang specializes in the development and manufacturing of automatic foil hot stamping and die-cutting equipment for the packaging and print finishing industries. The Full Automatic Sheet-fed Heavy-duty Foil Stamping Machine is available in two primary configurations—the JX-1040C with a maximum working speed of 4,800 sheets per hour and stamping accuracy of ≤±0.15mm, and the JX-1060T with a maximum working speed of 7,500 sheets per hour and stamping accuracy of ≤±0.1mm. Both models feature QT600-7 ductile iron castings, components from Mueller, Omron, Schneider, and Panasonic, Inovance PLC control, automatic oiling with cooling fan, and vertical and horizontal foil feed systems for reduced foil usage. Applications span folding cartons, luxury boxes, labels, and corrugated packaging across paper, carton board, corrugated board, and semi-hard plastic substrates. Jiexiang provides comprehensive technical support, one-year warranty, and responsive after-sales service. Connect with Jiexiang to discuss your speed requirements, precision needs, and substrate specifications.
