Product Introduction
Equipment structure
Technical Parameters
Optional

Product Introduction

Features

The entire machine utilizes Q235 carbon steel. The body wall panels undergo special processing for high strength, permanent dimensional stability, and structural safety.
Equipped with imported Taiwanese ball screws to ensure precise movement.
Main unit employs imported genuine bearings.
Critical components integrate imported electrical parts (e.g., Omron [Japan], Schneider [France]).
Foil stamping accuracy: ±0.1mm; Maximum speed: 1,800 sheets/hour.
Features Jiexiang’s automatic pressure adjustment system for swift and precise stamping pressure control.
Sino-English touchscreen control interface.
Taiwanese AirTAC pneumatic components ensure accuracy in every pneumatic motion.
Main PLC utilizes Xinjie Electric (Stock Code: 603416) for stable machine smooth operation.

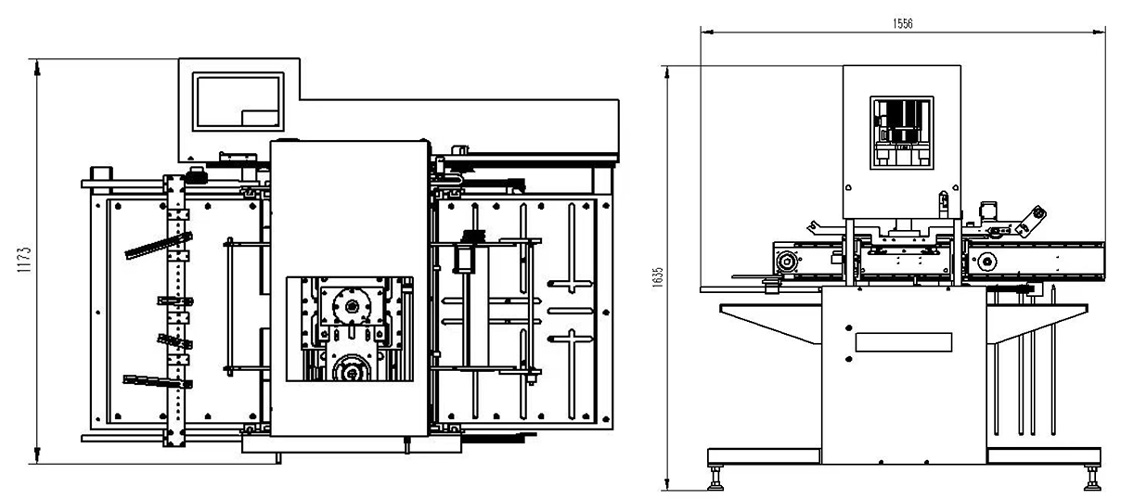

Equipment structure

Working principle of feeder paper feeding unit

Paper Feeding Unit

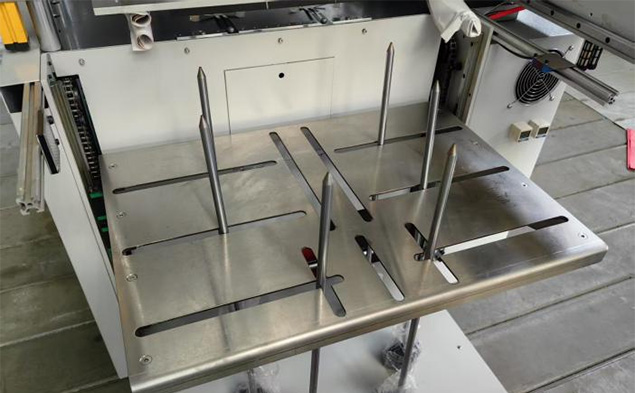

The paper feeding table is made of stainless steel material, with good hardness and no rust
The lifting system is driven by a stepper motor, which is durable and long service time.

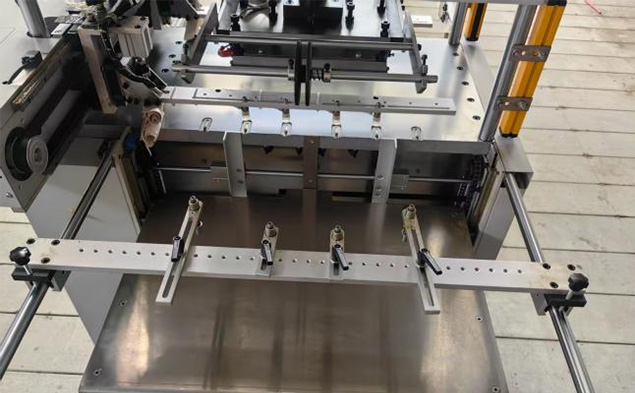

The front triangular aluminum guides are fixed on both sides, while the rear paper stop bar features multi-directional adjustment to accommodate various paper types.
The front section is equipped with an air-blowing device to ensure proper sheet separation and prevent double feeding.

Paper Receiving Unit

The delivery table is made of stainless steel for superior hardness and rust resistance, while the lifting system is powered by a stepper motor, ensuring long-lasting durability.

Electrical Unit

The human-machine interactive touch function can be set to different long.
If the length of the gold foil is less than 10cm, the alarm will be triggered.
The computer processing gold foil monitoring system displays the remaining and used gold foil lengths

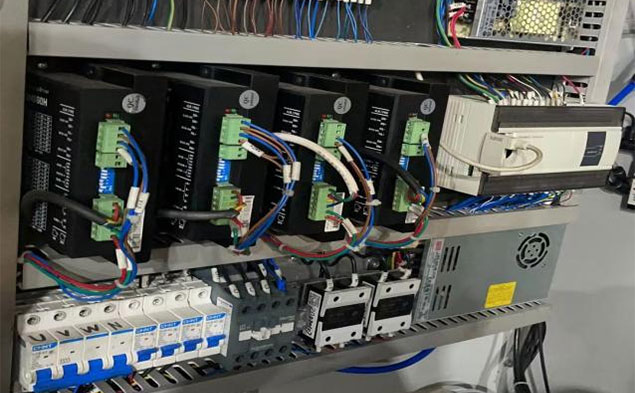

Adopting Xinjie PLC control system to ensure machine stable running.
Adopting German Sike Optoelectronics.

Hot Stamping Section

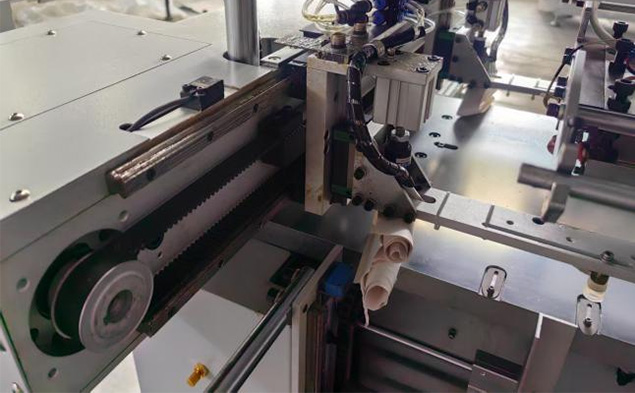

Longitudinal foil feeding system, driven by synchronous belt, precision very high, no error.
The institutional design is located behind the vertical foil feeding, ensuring smooth collection of foil.

Hot Stamping Section

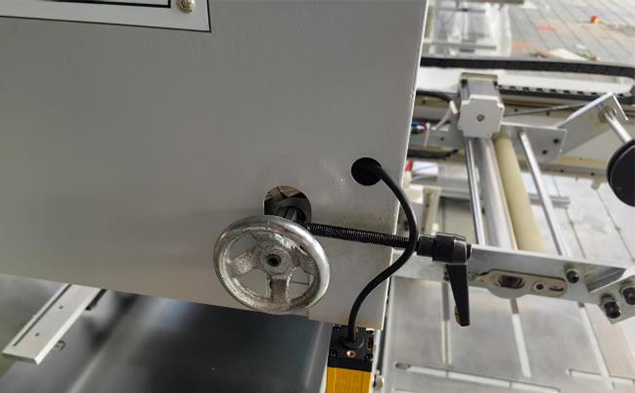

Shake the handwheel can move the heating plate left and right,can quickly position of hot stamping place.

Hot Stamping Section

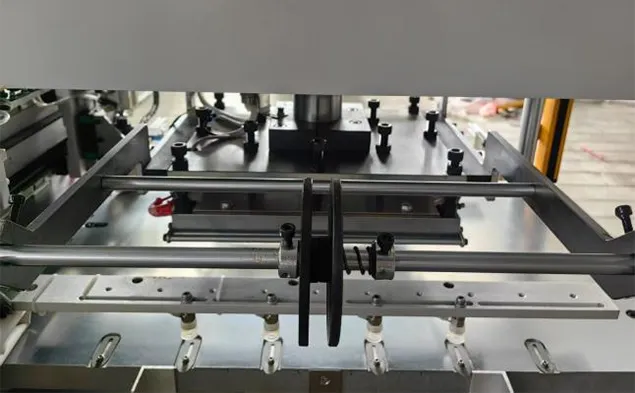

Adopting an L-shaped right angle push gauge to make paper positioning more accurate and meet different printing register requirements.

Main spindle part

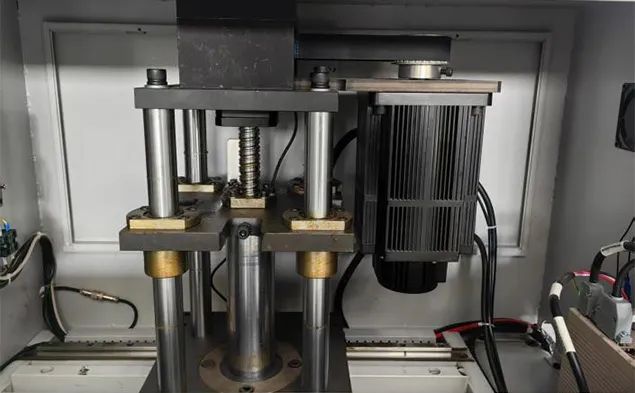

The spindle is driven by a 1.5KW servo motor, and the four column structural design makes the hot stamping more stable and less prone to tilting. The high-frequency quenching depth of the spindle core reaches 0.5 millimeters, and the surface is plated with hard chromium, which is durable and wear-resistant

Paper transfer part

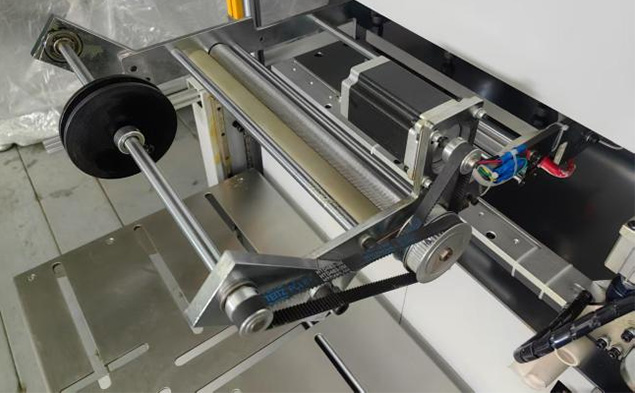

The horizontal paper feeding device adopts servo motor control, which is more efficient and accurate.

Safety protection part

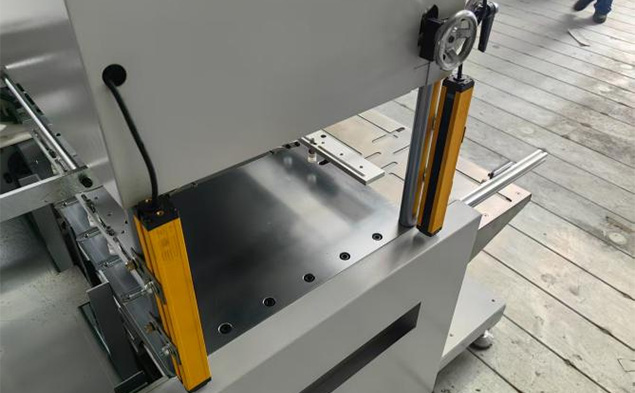

This machine is equipped with a safety protection grating. Once an object is detected approaching during machine operation, the machine will sound an alarm and shut down to protect the safety of the operator.

Technical Parameters

Technical Parameters JXC-58
Max. feeding paper size	550×450mm
Min. feeding paper size	150×150mm
Max. foil stamping size	300×250mm
Paper specifications	128～3000g/m2(cardboard)3.0mm thick grey board
Foil stamping precision	≤±0.1mm
Max. working pressure	20T
Max. working speed	1800s/h
Max. feed pile height	350mm
Max. foil length	240m (length wise)
Electric heating system	2kw 1 temperature zones,adjustable from 40-200℃
Foil width	20-300mm
Main motor power	1.5kw
Overall dimensions	1700×1250×1800mm
Machine weight	650kg
Machine Power	3.5kw
Working voltage	220V

Optional

Name	Brand	Origin	Name	Brand	Origin
Main Motor	Hangzhou Zhishan	China	Photoelectric Sensor	SICK	Germany
Button	Schneider	Germany	Proximity Switch	OMRON	Japan
AC Contactor	Schneider	France	Sensor	OMRON	Japan
Circuit Breaker	CHINT	France	Counting Photoelectric	OMRON	Japan
HMI	Xinjie	China	Mian Solenoid Valve	AIRTAC	Taiwan,China
Control Center	Xinjie	China	Air Volume Regulator	AIRTAC	Taiwan,China
Timing Belt	-	China	Cylinder	AIRTAC	Taiwan,China
Switching Power Supply	Mingzhu	Taiwan,China
Main Spindle Ball Screw	Dinghan	Taiwan,China
